Carbine CDC-5 Door Closer

The Carbine Radius Rack & Pinion series includes four models with adjustable closing, latching speeds, and back check. They are all single-action closers with a transom mount on the push side and non-handed installation making them easy to install on inward or outward opening doors.

The Carbine Radius Rack & Pinion door closers are supplied with everything you need for your next installation including standard and parallel arm fittings, and timber and self-drilling metal screws.

• Fire rated for 2 hours
• Constructed from 6061 grade aluminum
• Tested to EN1154 standards
• Cycle tested to 500,000 cycles
• Standard arm 180 degree opening
• Parallel arm 130 degree opening
• Sliding arm pull 180 degree, push 110 degree opening (120 degree CDC-5)
• Hold open 130 degree opening (180 degree, hold open angle 70-150 degree CDC-5)
• Adjustable closing & latching speed
• Adjustable back check 70 to 90 degrees
• Thermo-constant valve
• Surface mount
• Transom mount on push side
• Rack & pinion
• Positional mounting for closer strength
• Supplied with standard and parallel arm fittings
• Single-action door
• Non-handed installation
• Supplied with timber and self-drilling metal screws
• Constructed with extruded anodized aluminium body
• Slide rail arms for the CDC range include the hold open insert

CDC-5

• Adjustable power size 2-6
• Parallel bracket mount on size 3-5
• Max door width 1400mm
• Size 2 width of 850mm and weight of 40kg
• Size 3 width of 950mm and weight of 60kg
• Size 4 width of 1100mm and weight of 80kg
• Size 5 width of 1250mm and weight of 100kg
• Size 6 width of 1400mm and weight of 120kg
• Adjustable delayed action
• Body size 256.5mm x 60mm x 48mm

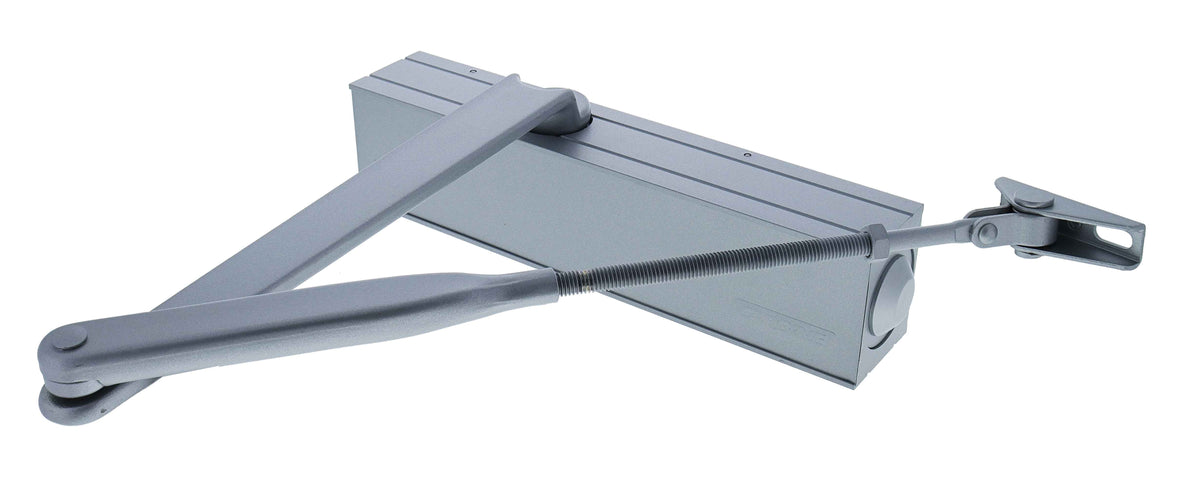

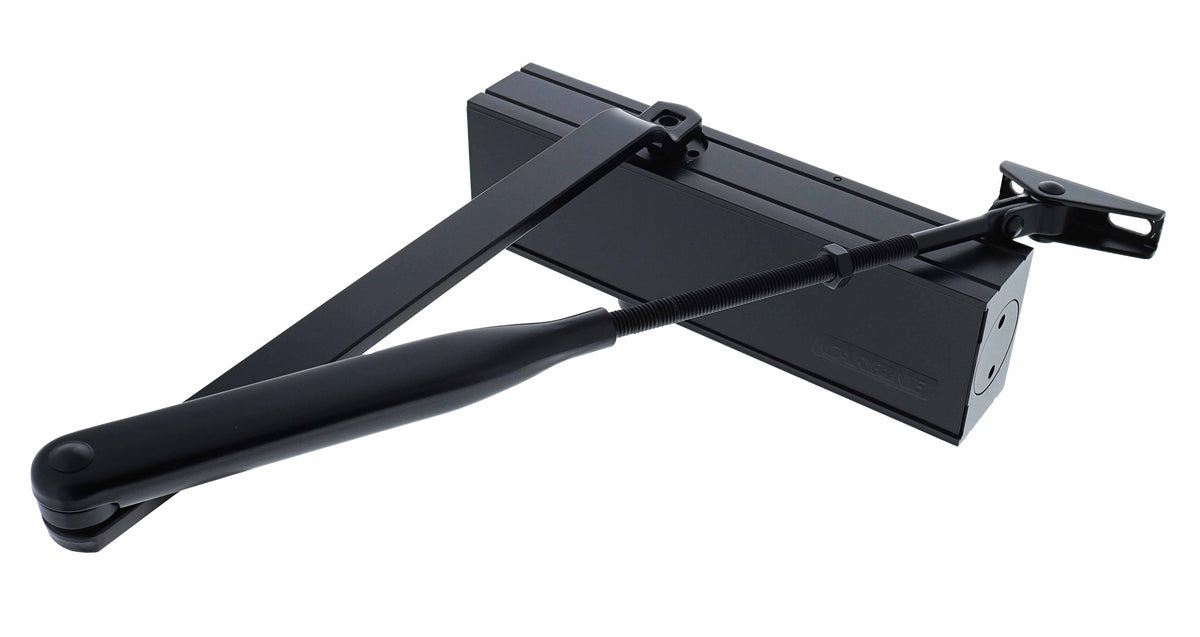

• Available in silver and matte black finish
