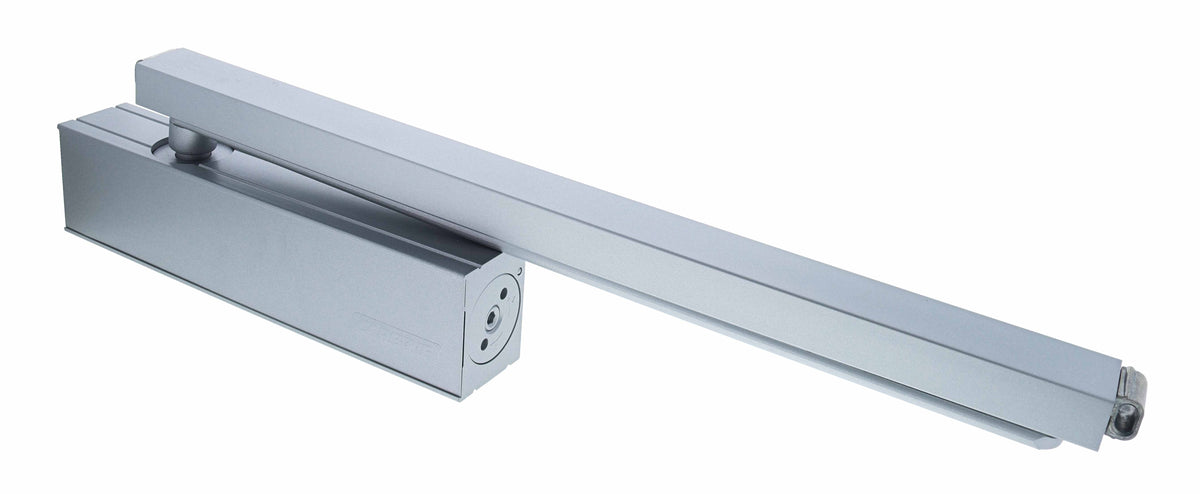

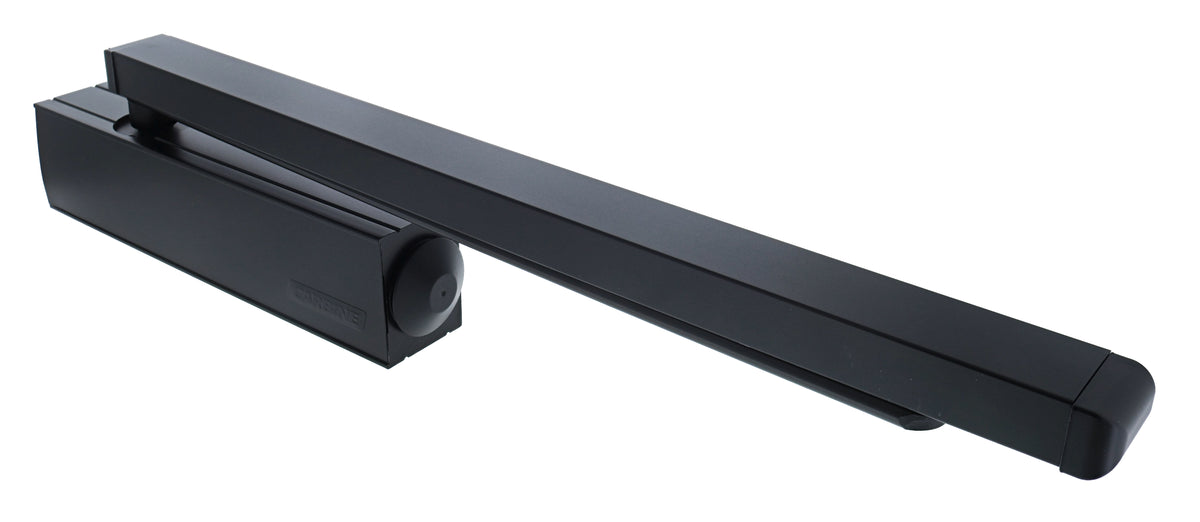

Carbine CDC-CA1 Radius Door Closer

The Carbine Radius Cam Action series includes four models with adjustable closing, latching speeds, and back check with a thermo-constant valve which adjusts the delayed action. They are all single-action closers with a transom mount in either push or pull side and non-handed installation making them easy to install on inward or outward opening doors.

The Carbine Radius Cam Action door closers are supplied with everything you need for your next installation including standard track arm fittings, and timber and self-drilling metal screws.

• Fire tested for 2 hours
• Constructed from 6061 grade aluminum
• Tested to EN1154 standards
• Cycle tested to 500,000 cycles
• AS1428.1 disabled compliant
• Regular and transom pull 180 degree opening
• Transom push 110 degree opening
• Adjustable closing & latching speed
• Adjustable back check 70 to 90 degrees
• Cam Action
• Positional Fixing Available (1)
• Thermo-constant valve
• Surface mount
• Supplied with standard track arm
• Door mount on pull side & transom mount on push side
• Single-action door
• Non-handed installation
• Supplied with timber and self-drilling metal screws
• Constructed with extruded anodized aluminium body


CA1

• Adjustable power size 2-4
• Max door width 1100mm
• Size 2 width of 850mm and weight of 40kg
• Size 3 width of 950mm and weight of 60kg
• Size 4 width of 1100mm and weight of 80kg
• Body size 240mm x 56mm x 43mm
