- Selectable extended latch bolt projection.
– Latch bolt can be set at the standard length of 15mm.
– Latch bolt can be set at an extended length of 19.5mm.
– Deadlatching is operational at both standard and extended latch bolt positions. - Improved deadlatching mechanism allows deadlatching to be operational with door gaps up to 9.5mm.
- 2-in-1 Carbine XZ Cam™ (CSM72-CAMXZ) can lock and unlock the handle/s and also retract the latch bolt.
- Fire rated for 4 hours as a primary lock.
- Improved latching mechanism to prevent door jamming on closing.
- Hardened steel lock bar protection cover to prevent manipulation.
- Configurable locking of either or both handles with an existing X cam.
- 45-degree lever operation of unlatching the latch bolt from the striker plate.
- Through fixing for upper furniture
and oval cylinder escutcheon with the Carbine Crisi range. - Selectable anti-lockout mode.
- The lock is functional with oval cylinders fitted with the standard W, X and Z cams.
- Retrofittable into doors fitted with existing equivalent latching mortice locks.
- Supplied striker plate required with extended latch bolt for proper latching and fire rating compliance.

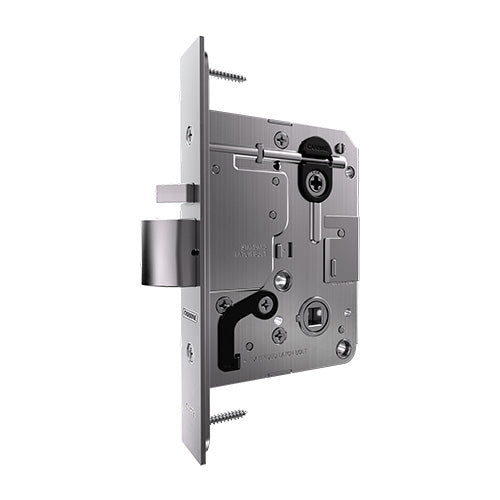

Carbine Longreach CSM72 Mortice Lock 60mm Backset
Carbine Longreach CSM72 Mortice Lock 60mm Backset
Regular price
$154.50 NZD
Regular price
Sale price
$154.50 NZD
Taxes included.
Shipping calculated at checkout.
The Carbine CSM72 is an innovative mortice lock, featuring an extendable latch bolt. Designed for use primarily in commercial applications.
- 60mm backset.
- Hold back mode can be configured with our Carbine hold back cam (handed) fitted on oval cylinder.
- Latch bolt and deadlatching snib handing for Installation on left and right-hand opening doors.
- Compatible with most electric strikes.
- Rebate kit available (CSM72-P-RK-SS).
- Extended timber faceplate available (sold separately).
- Installation suitable for door thickness from 32mm to 50mm.
Extended length hardware available separately for 50-100mm thick doors. - Optimal clearance between the lock face and the strike face after installation is 3mm, with an allowable range of 3mm to 5mm.
- Installation on inward and outward opening doors.
- Stainless steel casing, face plate, latch bolt and deadlatching snib.
- Cycle tested to 1,000,000 cycles, far exceeding the highest level of D8 of Australian Standard AS4145:2008*.
- Corrosion tested to 240 hours (equivalent to level C7 of Australian Standard AS4145:2008)*.
- Strength and security tested to the equivalent of S8 of Australian Standard AS4145:2008*.
- Box includes standard spindles to suit other manufacturers’ handles.
