Lockwood 005 Paradigm Deadbolt

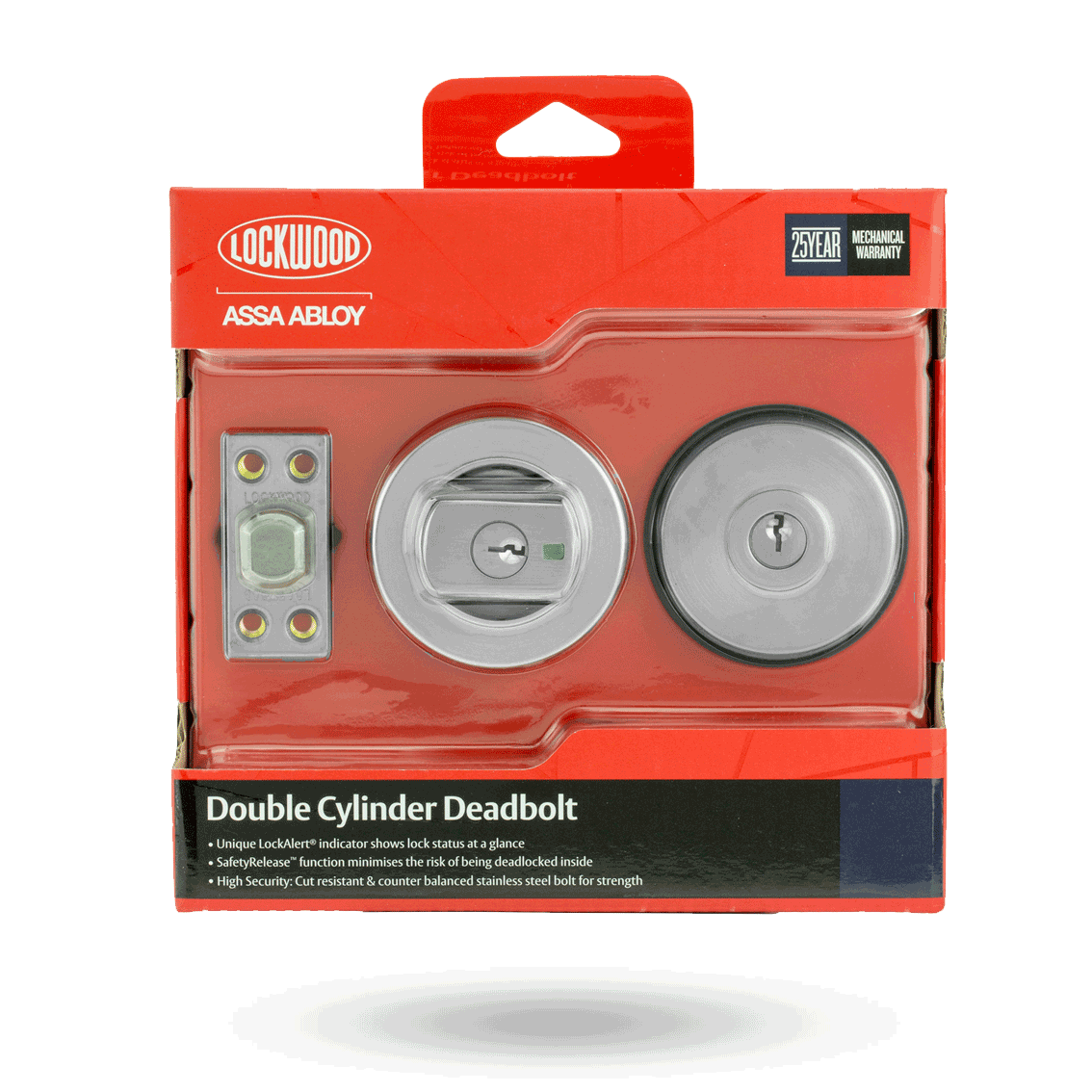

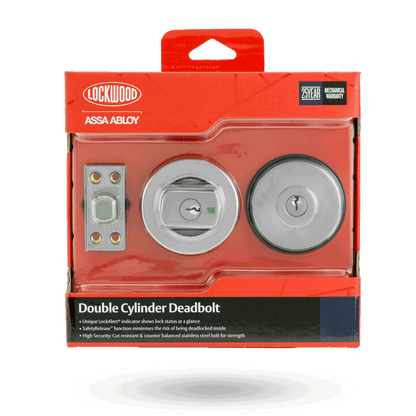

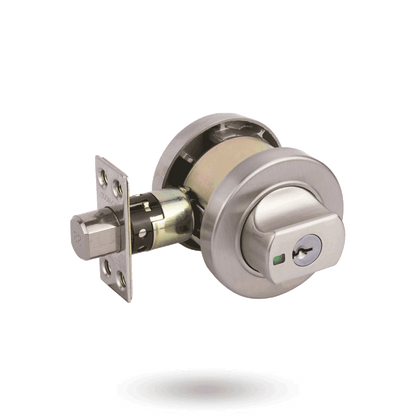

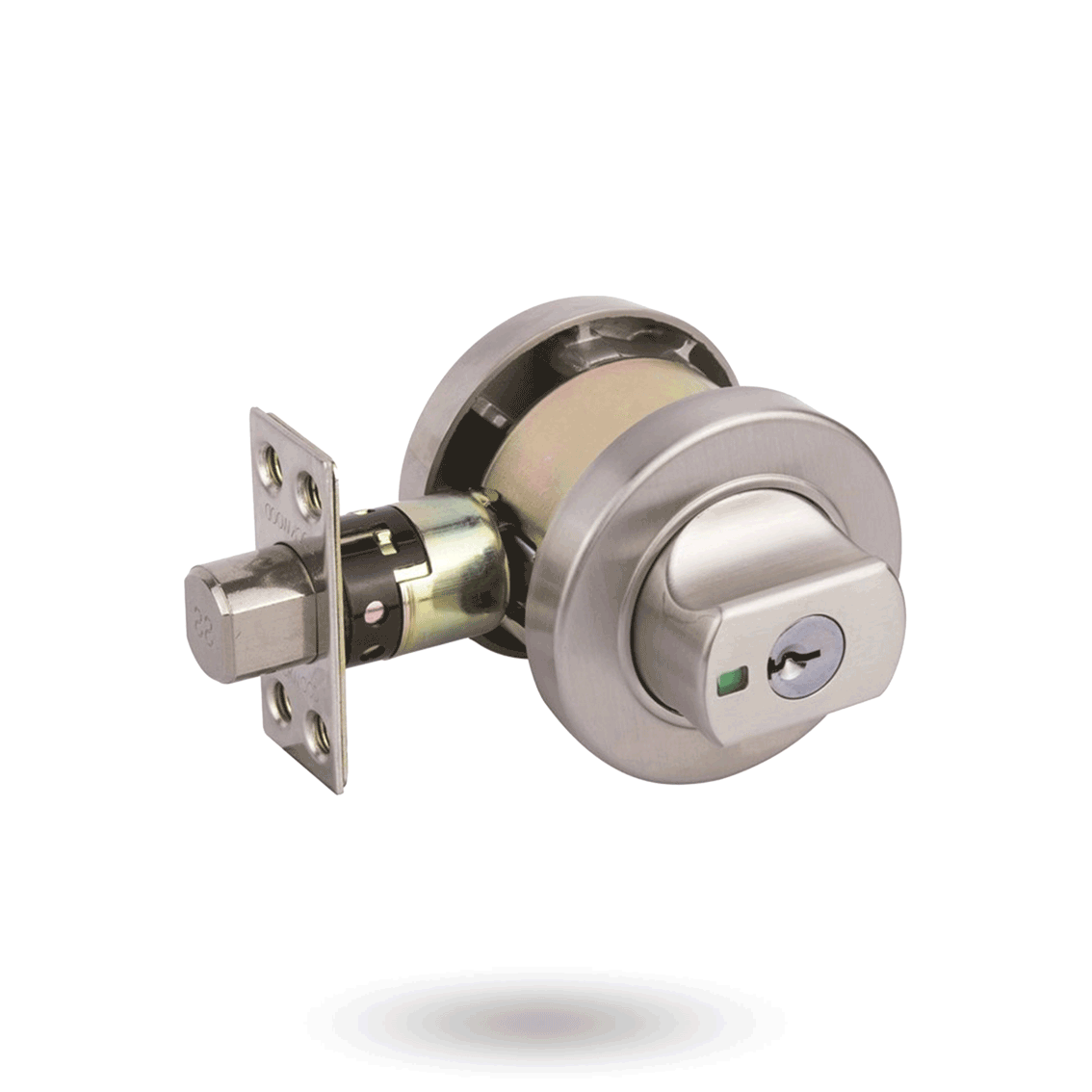

Lockwood Paradigm® 005 Deadbolt

The Lockwood Paradigm® 005 Deadbolt is a double cylinder premium security solution featuring innovative safety features. The contemporary styling can be used with any lever or entrance handle to create an aesthetically pleasing security solution ideal for residential and architectural applications.

Features

• Round rose escutcheon design
• Conforms to the security and durability requirements of Australian Standard AS4145.2-2008 | SL8D8C6K5
• Multi-mode slim-line deadbolt providing safety, security and convenience
• Simple to install
• High security, cut resistant stainless steel bolt
• Available in round and square designs

• Backset is 60mm-70mm adjustable stainless steel bolt.
• Cylinder is LW4 5 pin tumbler mechanism
• Brass cylinder and brass barrel
• High purity zinc alloy
• Suits door thickness 32mm-48mm. However, 32-36mm doors require spacer ring (included)
• Designed to compliment the Velocity Collection
• Plated finish
• The Lockwood Paradigm® 005 Deadbolt incorporates Lockwoods patented Lock Alert status indicator that shows the Lockset mode at a glance. The lockset can operate in three modes:
  • Secure Mode - Locked from the inside and outside.
  • Safety Mode - Locked from the outside and free to exit from inside.
  • Passage Mode - Free to enter from outside and free to exit from inside.

Dual Select®
Turn the key for safety mode. Turn the key further to select secure mode.

Safety Release™
Automatically unlocks the internal knob upon entry minimising the risk of being locked in.

Anti-Corrosion
Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test.
